Filling and labelling magnum bottles and large bottles
Click Image for Gallery
Magnum bottles and large bottles such as Jeroboam, Methuselah, Salmanazar etc. are very popular and in demand. They are popular as gifts and can be 'that certain something' at a party.
But how can such bottles be filled, corked and labelled? They definitely no longer fit into the filling line for standard bottles, that much is certain. To make matters worse, there is no such thing as 'the' large bottle, but countless bottle shapes with very different neck finishes.
We recommend a simple siphon filler for filling.
Corking can be done with a RAPID 56 or RAPID 58 corker. The cork lock and the centring tulip are selected to fit the neck finish of your bottle. If the inside diameter of the neck finish is larger than 16 mm, thicker corks than the standard corks are required.
We have recently added a labelling device for magnum bottles to our range. For larger bottles, we recommend the good old fish paste or a self-adhesive label that you print yourself.
Sealing wax is often used for finishing. Capsules for large bottles are not easy to find. There are also special 'trempier' devices to dip the heavy bottles upside down into the sealing wax bath. We are happy to provide information.
Products that make filling, corking and labelling magnum bottles and large bottles easier:
Art. No. 04.111.04 Simple siphon filler

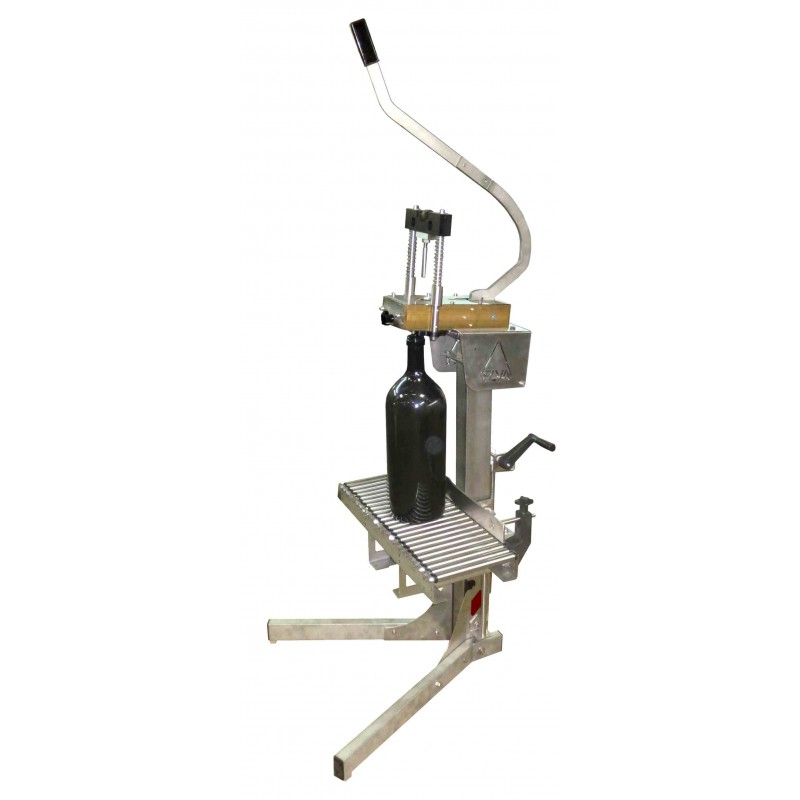

Art. No. 05.153 and 05.155 Manual corker for large bottles. RAPID 56 with bottle disc and RAPID 58 with conveyor belt. The cork lock and the centring cup are interchangeable and can be adapted to the bottle model.
Art. No. 05.155C Manual corker for large champagne bottles
Art. No. 06.739.04 Manual labeller for magnum bottles (maximum diameter 150 mm)
Art. No. 64.121.15 Natural cork 44 x 26 mm for bottles with an inner diameter of 19 mm
Art. No. 05.932 Sealing wax melting pan
Art. No. 64.904 Sealing wax in various colours
But how can such bottles be filled, corked and labelled? They definitely no longer fit into the filling line for standard bottles, that much is certain. To make matters worse, there is no such thing as 'the' large bottle, but countless bottle shapes with very different neck finishes.
We recommend a simple siphon filler for filling.
Corking can be done with a RAPID 56 or RAPID 58 corker. The cork lock and the centring tulip are selected to fit the neck finish of your bottle. If the inside diameter of the neck finish is larger than 16 mm, thicker corks than the standard corks are required.
We have recently added a labelling device for magnum bottles to our range. For larger bottles, we recommend the good old fish paste or a self-adhesive label that you print yourself.
Sealing wax is often used for finishing. Capsules for large bottles are not easy to find. There are also special 'trempier' devices to dip the heavy bottles upside down into the sealing wax bath. We are happy to provide information.
Products that make filling, corking and labelling magnum bottles and large bottles easier:
Art. No. 04.111.04 Simple siphon filler
Art. No. 05.153 and 05.155 Manual corker for large bottles. RAPID 56 with bottle disc and RAPID 58 with conveyor belt. The cork lock and the centring cup are interchangeable and can be adapted to the bottle model.
Art. No. 05.155C Manual corker for large champagne bottles
Art. No. 06.739.04 Manual labeller for magnum bottles (maximum diameter 150 mm)
Art. No. 64.121.15 Natural cork 44 x 26 mm for bottles with an inner diameter of 19 mm
Art. No. 05.932 Sealing wax melting pan
Art. No. 64.904 Sealing wax in various colours
