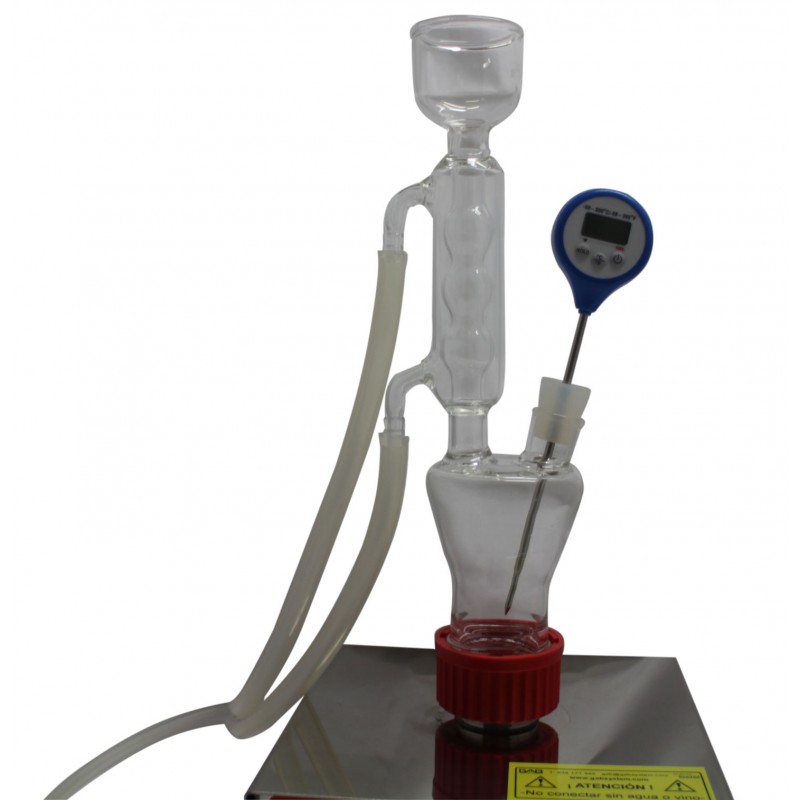

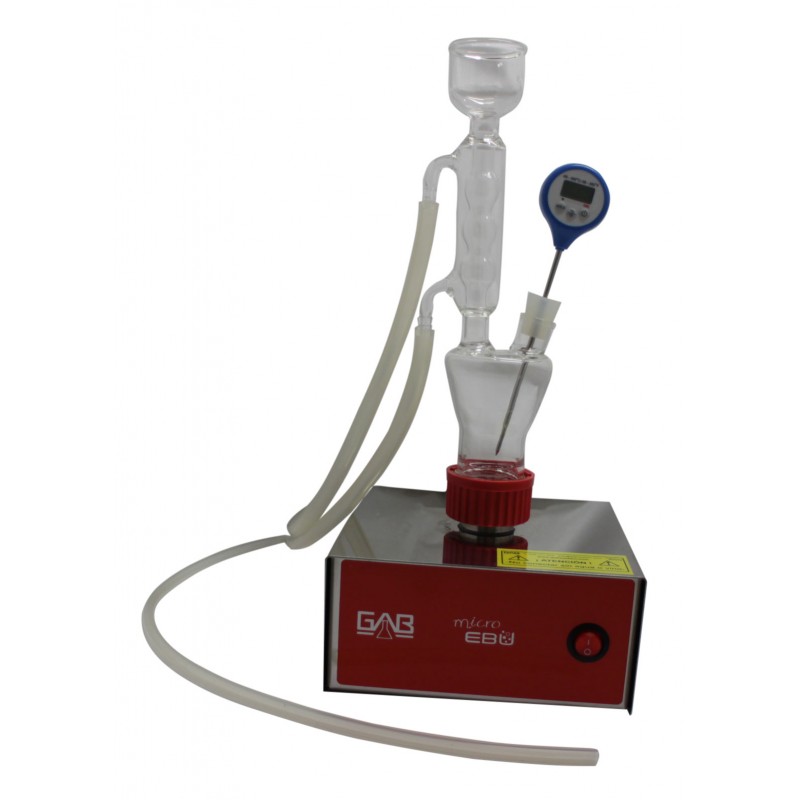

Simple ebullioscope with burner & thermometer Brand: GAB System

For determining the alcohol content of wines.
Only for low-sugar drinks up to an alcohol content of 17 %.


Principle:.
The boiling temperature of dry wines depends on their alcohol content, altitude and air pressure. The boiling temperatures of the water and the wine to be analysed are noted and transferred to a calculating disc, which directly displays the alcohol content with an accuracy of 0.1 % vol.



Features:
- Electrical heating
- Continuous cooling with water
- Glass body
- Fast boiling
- Easy to clean
- Renewed design
- Stable temperature during cooking
- Quick set-up and start
- Reliability of the method: accuracy of 0.1 % vol.


Technical data:
- Measuring range: 0-17 % vol.
- Inaccuracy: +/- 0.20 % vol.
- Accuracy: 0.01 % vol. alcohol.
- Duration 6-8 min.
- Voltage 230 V / 50-60 Hz or 110 V / 50-60 Hz.
- Power consumption: 125 W.
- Dimensions with thermometer: 430x175x290 mm.
- Weight: 2.4 kg


CONCEPT:
- Pipe for cooling and extraction
- Table for calculating the degree
- Gasket
- Mains cable
- Instructions for use (es, en)


Please note: A thermometer must be ordered separately
Compatible thermometers: 46.229.502 Simple thermometer
46.227.001D Thermometer Dujardin Salleron
