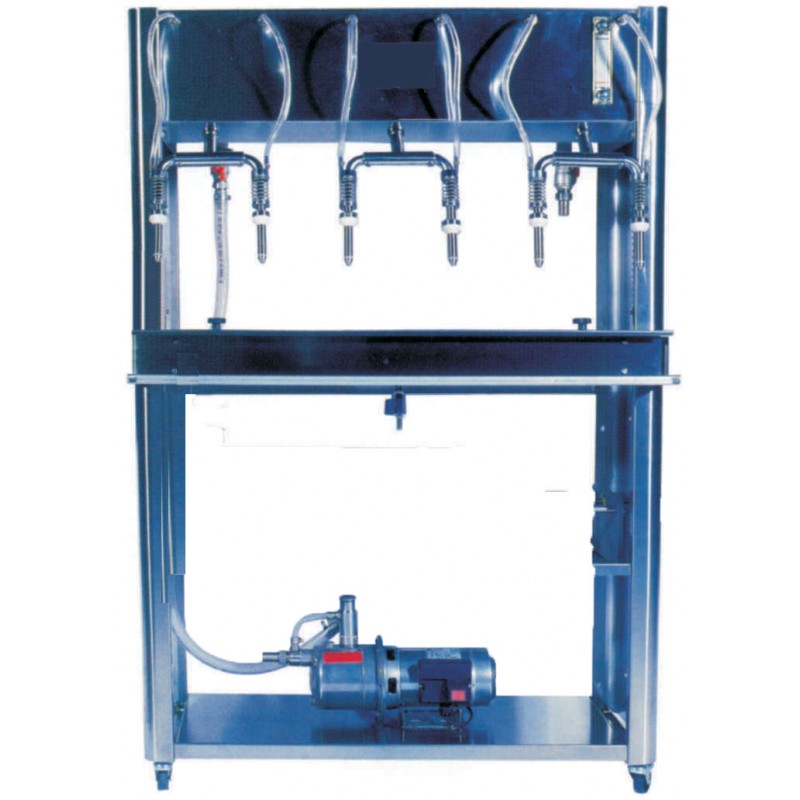

Drop pressure filler inox 6-lift with pump
Click Image for Gallery
For filling bottles from 0.5 to 1.0 litre capacity with low-viscosity filling products.
6 filling tubes, diameter 16 mm. Closed system. Feeding by centrifugal pump.
Made entirely of stainless steel.
Incl. inlet valve (under the filling container) and float.
As soon as the tank is full, the pump continues to work, but thanks to the bypass and the float, the pump continues to work in a circle without forcing the liquid into the tank, so that the tank does not overflow.
With centrifugal pump: JES5/bp
Capacity: approx. 720 bph
Dimensions: 900 x 500 x H 1,700 mm
Weight: 47 kg
6 filling tubes, diameter 16 mm. Closed system. Feeding by centrifugal pump.
Made entirely of stainless steel.
Incl. inlet valve (under the filling container) and float.
As soon as the tank is full, the pump continues to work, but thanks to the bypass and the float, the pump continues to work in a circle without forcing the liquid into the tank, so that the tank does not overflow.
With centrifugal pump: JES5/bp
Capacity: approx. 720 bph
Dimensions: 900 x 500 x H 1,700 mm
Weight: 47 kg
unit | |
unit | Stk. |
- Product Code: 04.137.06
- Availability: Out Of Stock
- 3,168.00 EUR price per Stk.
