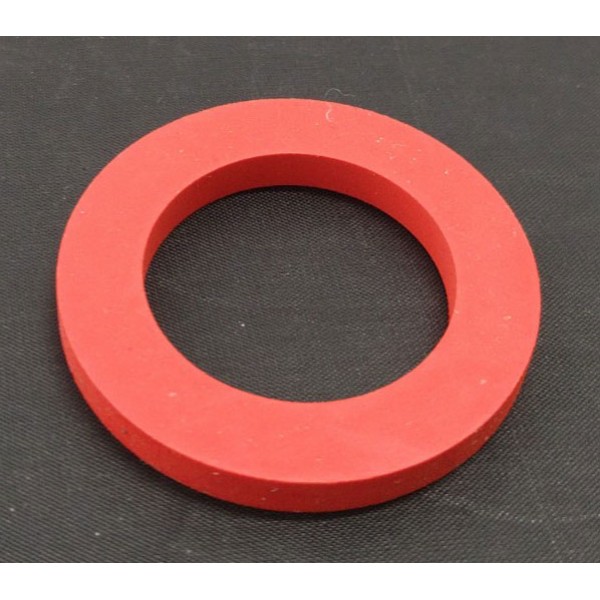

Seal for Super Cristal filter element; 40/40 cm Ø 46/30 x 5 mm
Click Image for Gallery
| File | Size | |
|---|---|---|
| Super_Cristal2.pdf | 1.21MB | Download |
Material: Red rubber (the colour may vary). suitable up to approx. 20 % by volume. Silicone seals must be used for high-percentage alcohols.
Dimensions:46 x 30 x thickness 5 mm
As a rule, the sealing rings with a thickness of 5 mm are used for the end elements and very thin filter layers.
The 6 mm gaskets are recommended for standard filter sheets (23.103.86). There are also 7 mm seals for very thick filter layers.
Dimensions:46 x 30 x thickness 5 mm
As a rule, the sealing rings with a thickness of 5 mm are used for the end elements and very thin filter layers.
The 6 mm gaskets are recommended for standard filter sheets (23.103.86). There are also 7 mm seals for very thick filter layers.
| unit | |
| unit | Stk. |
