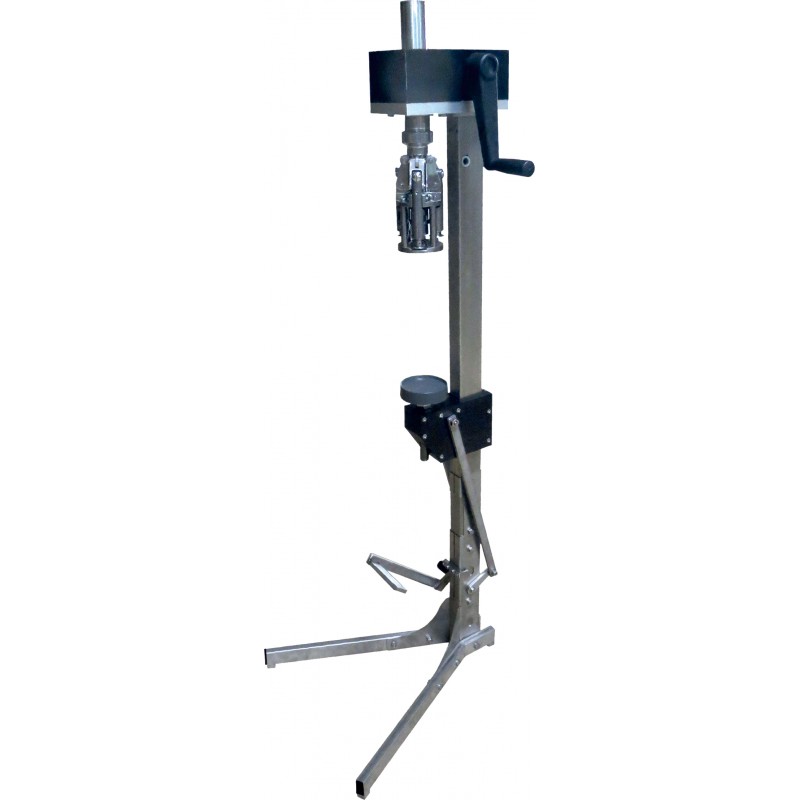

ELVA Sertalu S41 standard capping machine without capping head

Manual machine for rolling on aluminium roll-on closures on flaps with threaded ends.
Precise roll-on result as on automatic machines thanks to defined axial pressure.
Model with holder for capping heads M52 x 1.5 mm thread; without capping head (picture with head)
The manual capper can be equipped for wine bottles BVS 30/60 or BVS-28, as well as for syrup bottles, oil bottles, juice bottles (MCA) and schnapps bottles (PP-31)
Weight approx. 28 kg


Working method:
Manual operation with pedal and crank for small series; without motor. The thread is moulded into the capsule and the safety ring / snap ring is pressed on ('flanging').
With the foot pedal it is possible to produce the head pressure of approx. 180 kg in a simple, convenient way. With our device, you can seal small batches with the sealing quality of an automatic filling machine.


Youtube link Sertalu:



Options:
05.254.01 Standard locking head BVS-28
05.254.02 Standard locking head BVS-30
05.254.03 Standard locking head PP-31.5 x 24
05.254.04 Standard capping head PP-31.5 x 24 with spout (on neck finish PP-31.5 x 17)
Other dimensions such as MCA for juice bottles on request
